Xilin bottle baking machine

Xilin bottle baking machine is a type of printing machine that combines the characteristics of domestic and foreign printing lines, especially suitable for horizontal and vertical ampoule production lines with 1ml, 2ml, 5ml, 10ml, 20ml and non national standard ampoules. The characters are clear, glossy, firmly sintered, and brightly colored. It meets the requirements of G.M.P for ampoule printing and can meet the needs of domestic and foreign users for baking ampoules and penicillin bottles. It is the fourth generation product of our company. Main features: Double headed printing is stable and fast; The upgraded product comes with a robotic arm, making the machine run smoother and more efficient. Barbecue uses silicon carbon rods for heating and heating up quickly; Adopting variable frequency speed regulation can automatically control the production rate; Adopting electrical module control, it can rise to over 600 degrees Celsius within 25 minutes, and the temperature is automatically controlled within plus or minus 1 degree Celsius; The oven cover is opened by oil pressure; The qualified rate of baking characters is above 98%. Ampoule bottles and penicillin bottles, with a minimum distance of 3.5mm from the bottom of the printed font. Ampoule bottles and penicillin bottles have unbroken baked characters all around the body

Specific working parameters:

1. Installed power: The main motor is 0.75KW with stepless speed regulation, and the installed power of the baking furnace is 28KW, with a actual consumption of 12-14KW. Gas consumption is 1.5Kg/hour.

2. Production: 70-120 pieces/minute.

3. Operator: 2 people

4. Scope of application: 1-20ml ampoule bottle; 2-20ml penicillin bottle; 2-20ml control bottle and special specification penicillin bottle and test tube

5. Product specifications: 8.5 meters long, 0.65 meters wide, and 1.42 meters high.

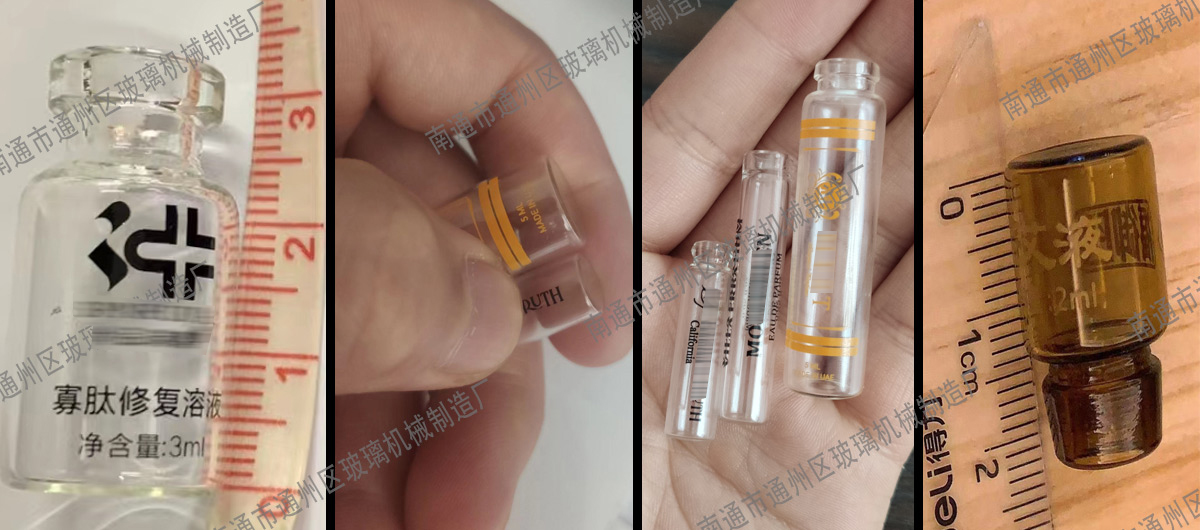

特规瓶烤字
